Briidea S715 Universal 5-1-1 Day Programmable Thermostat, 2C/2H with Dual powered
Apply with various kind of heating and cooling system. Including single stage, multi-stage and heat pump (up to 3-stage heat, 2-stage cool, with O/B)

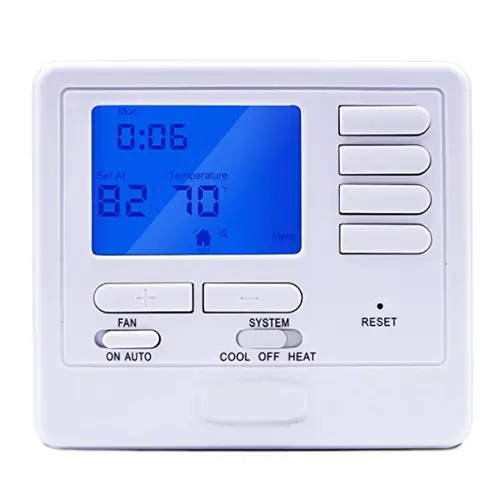

Large LCD digital display with backlight, easy to read in various lighting conditions. Two power options
Quote Now
Specifications:
Stages: 2 Heat/2 Cool
Electric or Gas configurable

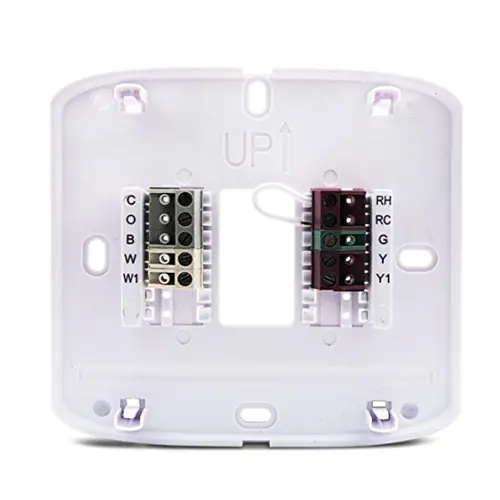

Separate B & O terminals
Separate heating and cooling swing (cycle rate)
Filter change indicator (selectable on or off)
Room temperature calibration adjustment
5 minute compressor delay protection (selectable on or off)
Display options: Fahrenheit or Celsius temperature display, 12 or 24 hour clock
Programmability: 5(Mo~Fr)/1(Sa)/1(Su) Programmable
Program: 4 times/4 temp, “WAKE””LEAVE””RESTRN””SLEEP”
Load rating: 1.0Amp per terminal, 1.5Amp maximum all terminals combined
Display accuracy: ±1℉(under 68℉)
Power source: 24VAC(18 to 30 VAC), 50/60 Hz for hardwire('C' wire); Or 2*AAA 1.5V Alkaline batteries power
Fan Switch: AUTO/ON
System Switch: HEAT/OFF/COOL
The display range of temperature: 41℉ to 95℉(5℃ to 35℃)
The control range of temperature: 44℉ to 90℉(7℃ to 32℃)
Differential: 0.4 to 2.0℉
Low battery indicator: Under 2.45V(without 24V power supply)
Backlight: Blue, light on for 15 seconds
Dimensions of thermostat: W120 x H115 x D24mm
Package include:
Briidea S715 Thermostat
(Jumper wire connected)
Two screws and anchors
User manua
